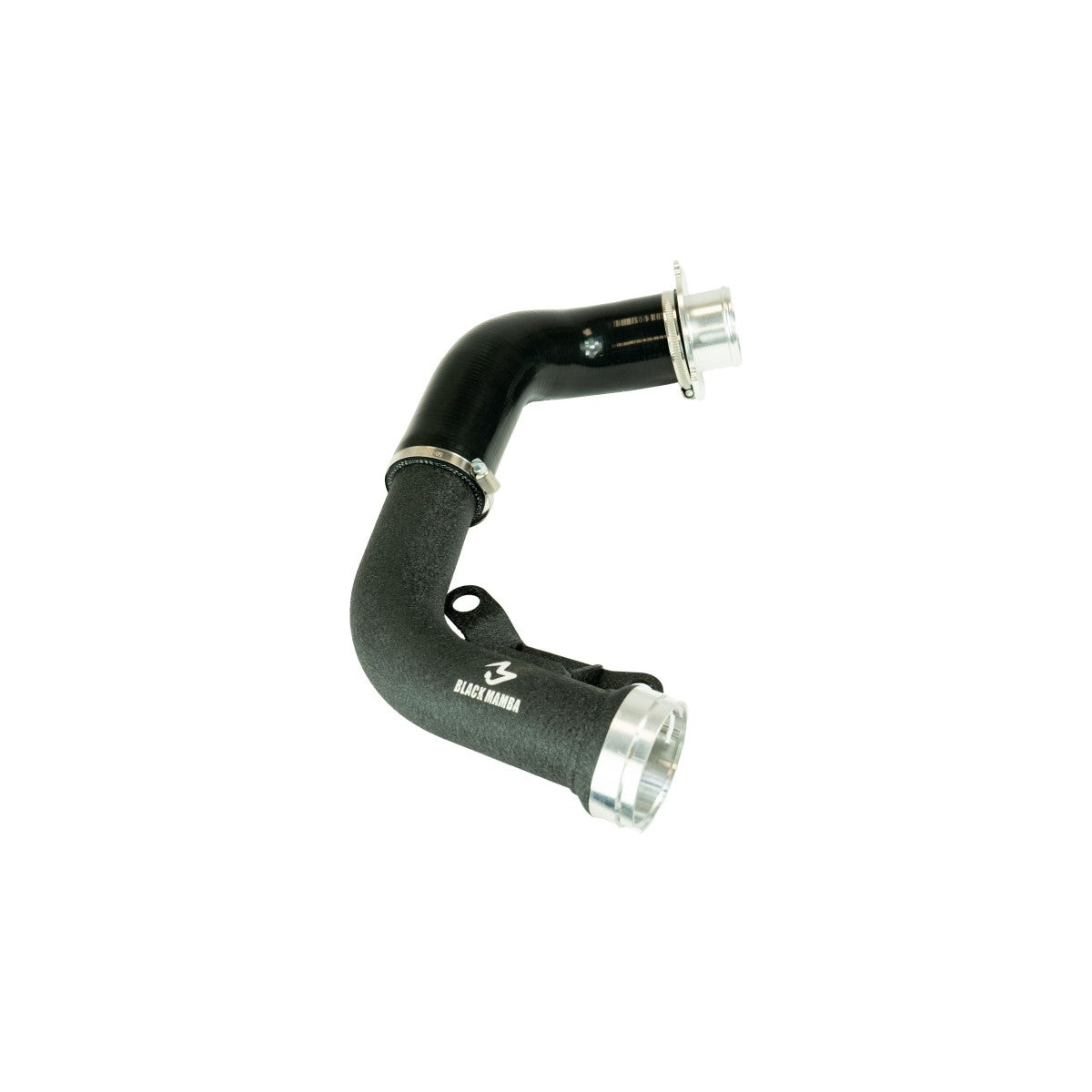

Black Mamba Turbo Outlet Pipe EA113 K04

The Black Mamba K04 Turbo Outlet Kit is a direct replacement for the factory components in 2.0 TFSI EA113 engines equipped with a K04 turbocharger.

Optimized Airflow from the Turbocharger

The kit is designed to improve flow from the turbocharger to the intercooler through:

• High-flow aluminum pipe with black powder coating

• Reinforced 4-ply silicone hose

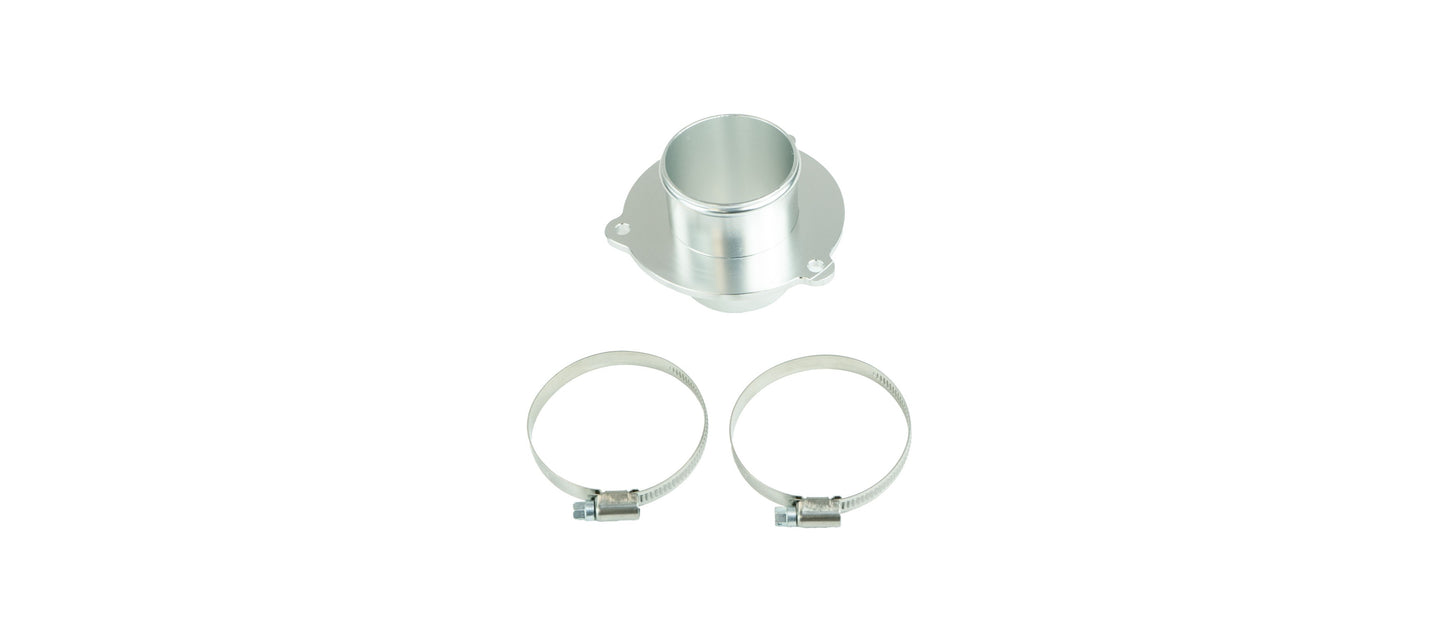

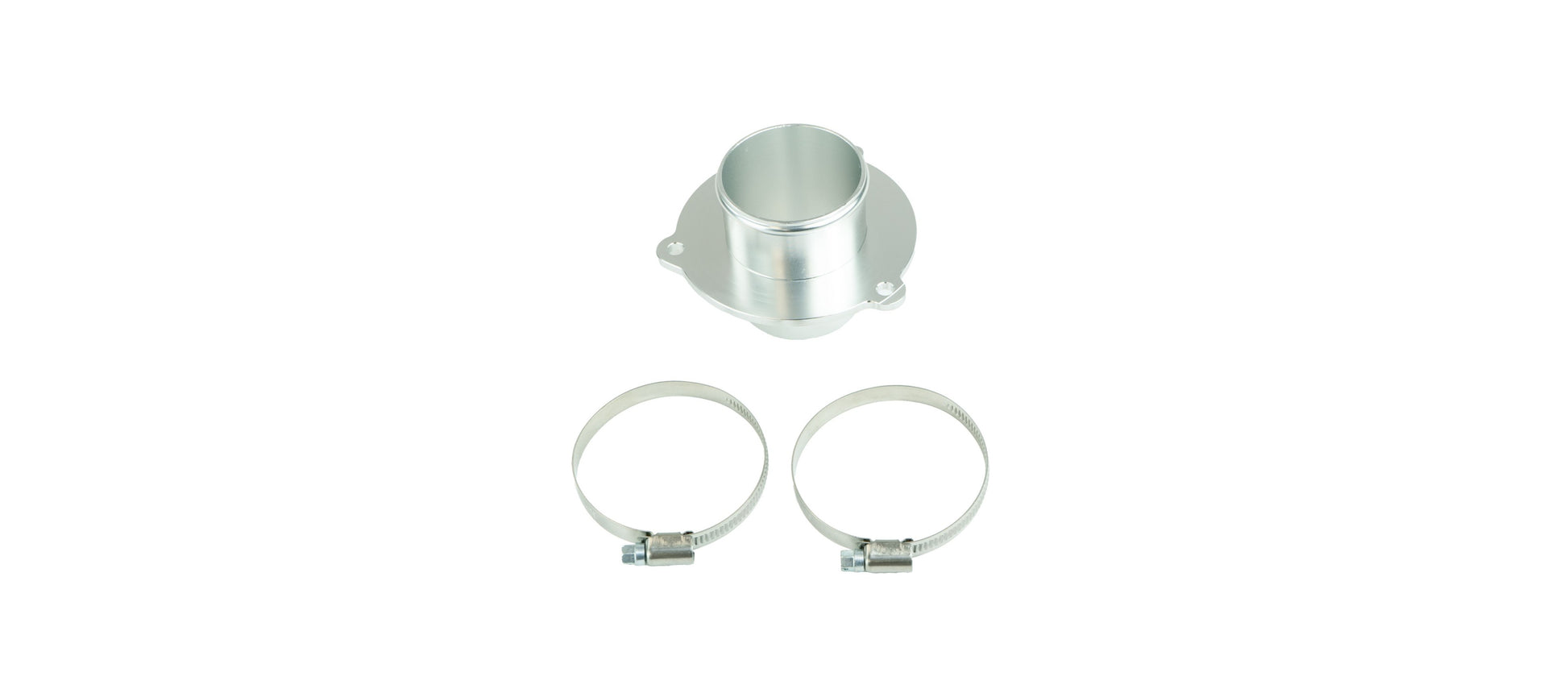

• Precisely machined Turbo Muffler Delete

The result is lower back pressure and more efficient turbocharger operation.

Performance

• Dyno-proven gain of ~6 hp at Stage 2+

• Total increase of 5–7 hp

• Faster boost response

• Clearer and more aggressive turbo sound

Technical Specifications

• Direct bolt-on installation

• Diameter: 2.25” (57mm)

• 4-ply black silicone hose

• Aluminum Turbo Muffler Delete

• Full mounting kit included

⚠ Not compatible with K03 turbocharger
