Racingline Turbo Inlet Pipe Kit EA888.4 MQB Evo

RacingLine Boost Pipe Kit – 2.0 TSI EA888 Gen.4 MQB Evo

The RacingLine Boost Pipe Kit is a high-quality hard pipe kit for compressed air, developed for 2.0 TSI EA888 Gen.4 MQB Evo vehicles.

The kit replaces the restrictive and potentially problematic factory pipes in the air path between the turbocharger, intercooler, and throttle body. The goal is smoother, more continuous airflow, less turbulence, and more reliable operation at high pressures.

Factory components in this area are often a compromise between cost, noise, and standard use. With software tuning, higher pressure, or aggressive driving, they can become a limitation. RacingLine solves this with a smoother air path, optimized placement, and a more robust construction.

Thanks to reduced resistance, the turbocharger operates more efficiently and can move a larger volume of air with fewer losses. This aids faster spooling, better response, and more stable air delivery to the engine.

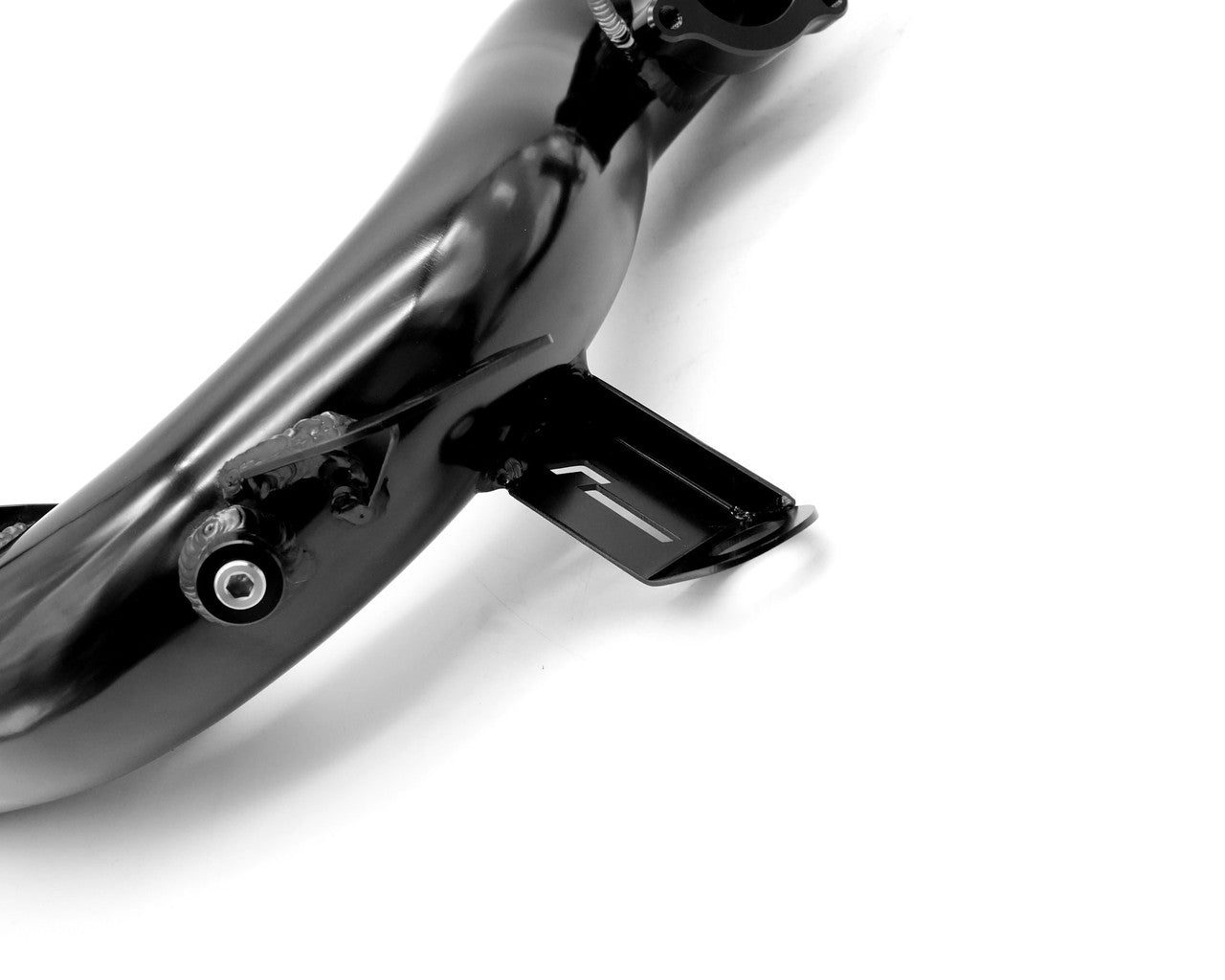

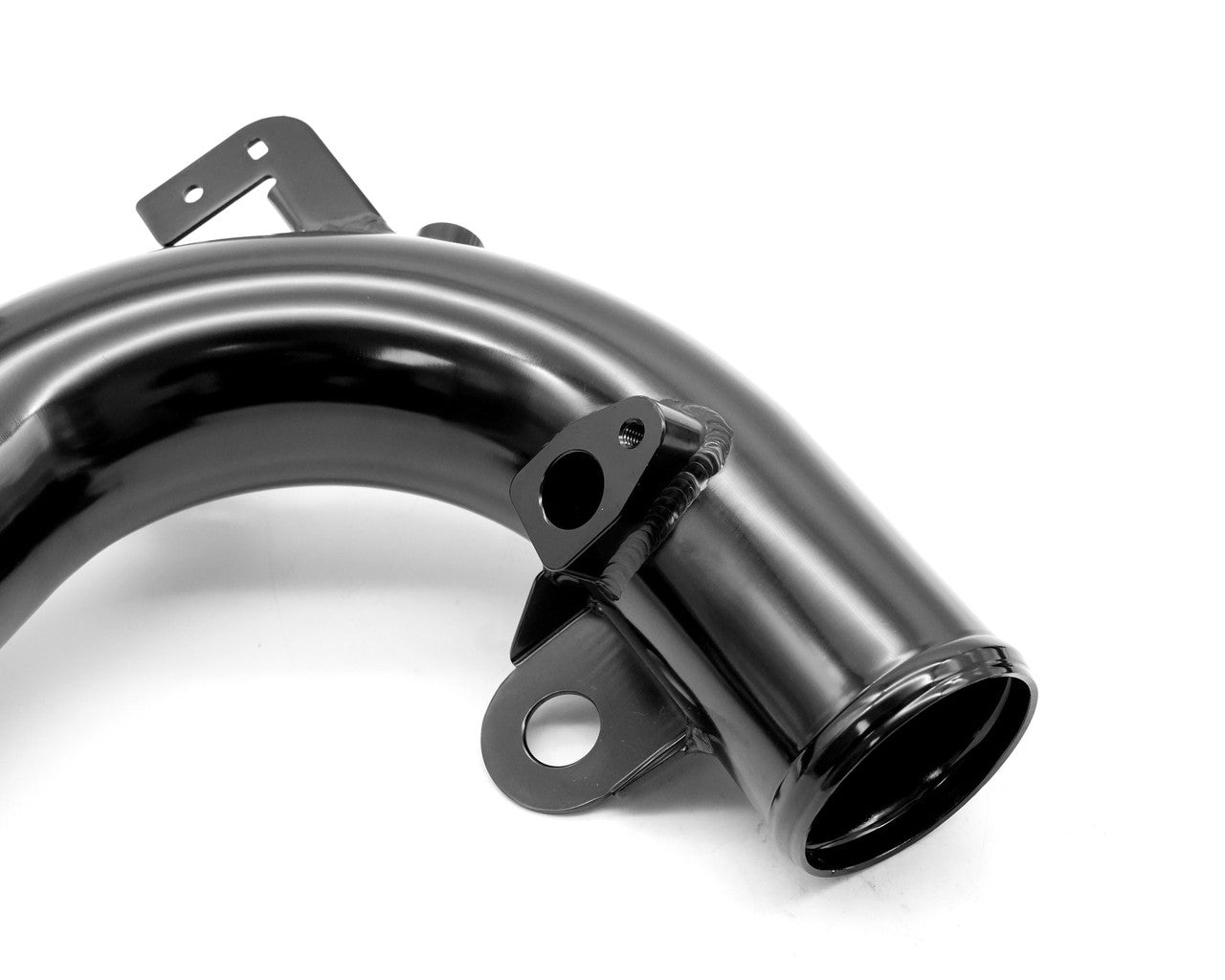

The hard pipes are made from a single piece of mandrel-bent 6000 series aluminum, with a thin-wall construction and an outer diameter of 60 mm. This ensures maximum smooth airflow without unnecessary internal restrictions.

The kit is a direct replacement for the factory components and requires no cutting or drilling. Installation is fully reversible, and the included mounting hardware is selected to ensure accurate and stable fitting.

Key Advantages

• Developed for 2.0 TSI EA888 Gen.4 MQB Evo
• Replaces restrictive factory boost pipes
• Smoother air path between turbocharger, intercooler, and throttle body
• Reduces resistance and turbulence
• Helps the turbocharger operate more efficiently
• Promotes faster turbo spooling
• More pronounced turbocharger sound
• Suitable for standard and tuned vehicles
• 60mm hard aluminum pipes
• Mandrel-bent 6000 series aluminum
• Thin-wall construction for maximum smooth airflow
• TIG welded mounting brackets for accurate and stable fitting
• Beaded ends for high-pressure anti-slip
• Hand-polished and black anodized pipes
• Laser-etched RacingLine logo
• Stainless steel Mikalor clamp
• OEM rubber mounts and new bolts included
• Installation without cutting or drilling

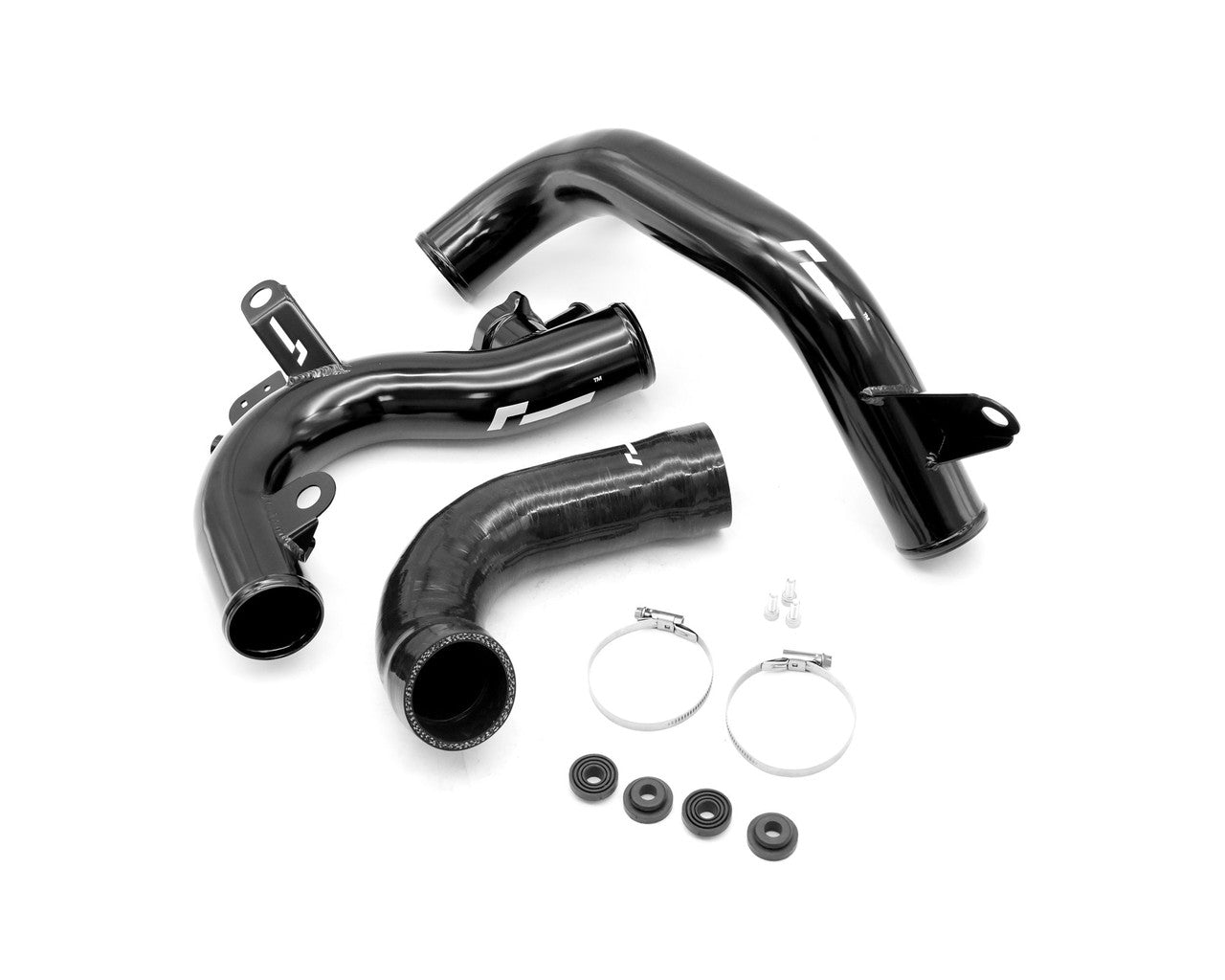

3-Piece Kit

• Hard aluminum pipe from turbo outlet to intercooler
• Hard aluminum pipe from intercooler outlet to throttle body
• Reinforced silicone hose to turbo outlet

Versions

• VWR140013 – for more powerful models with Continental Turbo, 300 / 310 / 320 / 333 hp
• VWR140015 – for models with Garrett Turbo, 245 / 265 hp

Suitable For – VWR140013 Continental Turbo 300 / 310 / 320 / 333 hp

• VW Golf 8 / 8.5 GTI Clubsport – 2020+
• VW Golf 8 / 8.5 R – 2020+
• VW Arteon R 2.0 TSI 320 hp – 2020+
• VW T-Roc R 2.0 TSI EA888.4 – 2021+
• VW Tiguan II R 2.0 TSI 320 hp – 2020+
• Audi S3 8Y / 8Y.2 – 2020+
• Audi TTS 8S 2.0 TFSI 320 hp EA888.4 – 2021+
• Audi SQ2 facelift EA888.4 – 2021+
• Cupra Leon 4 / 4.5 300 TSI FW – 2020+
• Cupra Ateca 300 hp EA888.4 – 2021+

Suitable For – VWR140015 Garrett Turbo 245 / 265 hp

• VW Golf 8 / 8.5 GTI – 2020+
• VW Tiguan II 2.0 TSI 245 hp – 2021+
• Audi A3 2.0 TSI 8Y / 8Y.2 – 2020+
• Audi TT 45 TFSI 8S 245 hp EA888.4 – 2021+
• Cupra Leon 4 / 4.5 245 TSI FW – 2020+
• Cupra Formentor 245 hp – 2020+
• SEAT Tarraco 2.0 TSI 245 hp – 2021+
• Skoda Octavia 4 / 4.5 vRS 2.0 TSI 245 hp NX – 2020+
• Skoda Kodiaq vRS 2.0 TSI 245 hp EA888.4 – 2021+

Construction

• Mandrel-bent aluminum hard pipes
• 6000 series aluminum
• 60mm outer diameter
• Thin-wall construction for optimal internal flow
• TIG welded mounting brackets
• Reinforced multi-layer silicone hose
• Internal steel reinforcement of silicone hose
• High temperature and high-pressure resistance
• Hand-polished and black anodized finish
• Laser-etched RacingLine logos

Recommended Combination

• For best results, RacingLine recommends combining the kit with the RacingLine Boost Hose Kit VWR140006.
• The Boost Hose Kit replaces the factory rubber hoses with reinforced silicone hoses featuring a smoother air path and internal reinforcement.

Important

• Choose the correct version according to the turbocharger and vehicle power: VWR140013 for Continental Turbo or VWR140015 for Garrett Turbo.
• The kit is designed only for 2.0 TSI EA888 Gen.4 MQB Evo vehicles.
• Installation requires no cutting or drilling and is fully reversible.
• Compatibility check by model, year, power, and turbocharger is recommended before ordering.
