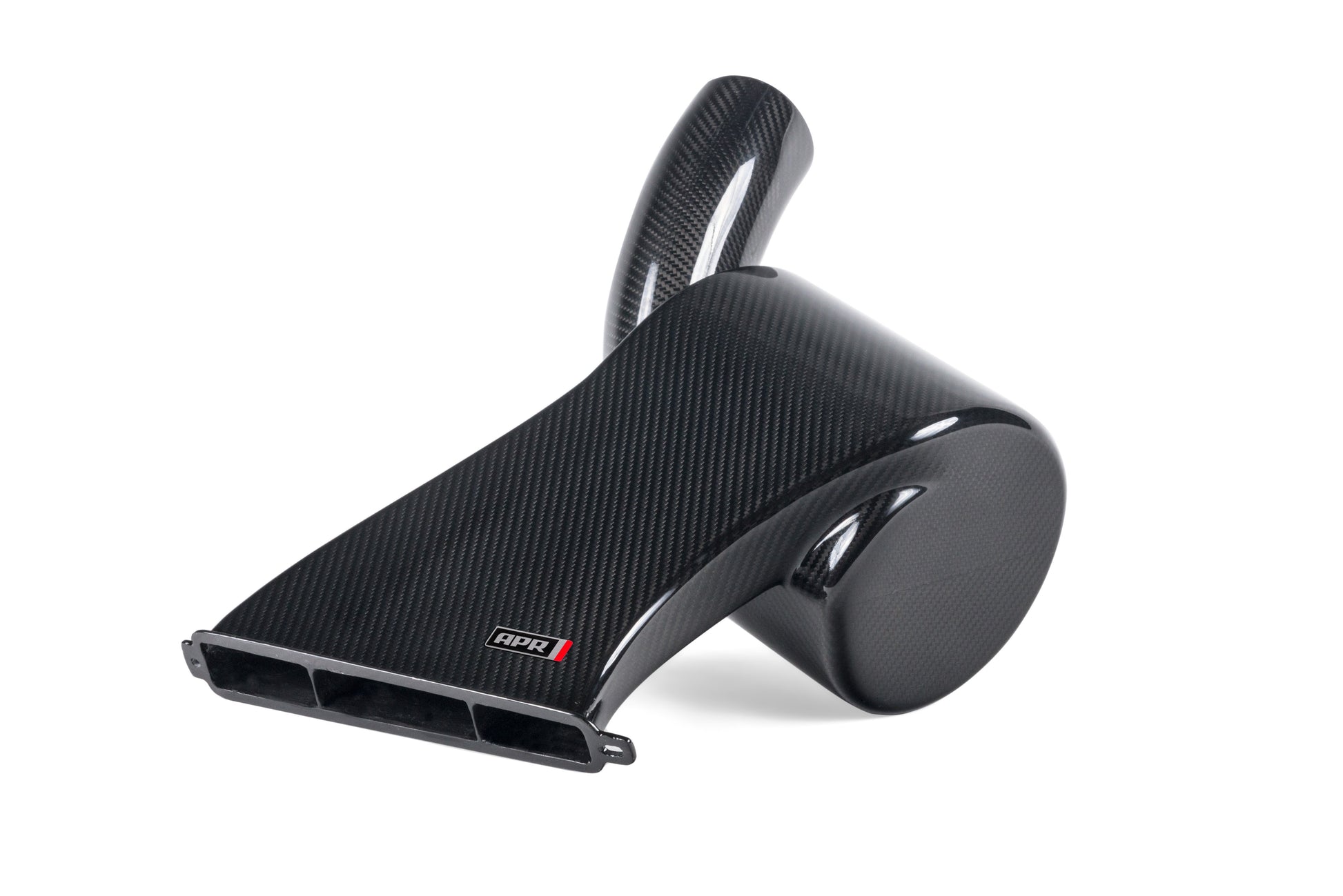

APR Carbon Fiber Intake System MQB EA888.3

The APR Carbon Fiber Intake System is an attractive and highly effective upgrade for the latest 1.8T and 2.0T engines used in various MQB platforms.

The factory intake provides a good foundation, but some of its potential is sacrificed for other requirements such as:

• sufficiency only for OEM power

• lower noise levels

• long service intervals

APR uses this as a starting point and develops a system that improves performance without sacrificing reliability and filtration.

How does it improve performance?

The APR Carbon Fiber Intake System primarily increases performance through improved mass airflow through the system while providing sufficient filtration.

The result is:

• more power and torque across the entire range

• a more direct and responsive throttle feel

• a more pronounced engine and turbocharger sound

• in some cases, even better fuel economy, depending on driving style

⸻

Research & Development

APR makes no compromises in development. Over nearly a year, the brand's engineers created numerous prototypes using:

• in-house Stereolithography 3D printer

• rapid prototyping techniques

• simulated models

• flow bench analyses

• dyno tests

• real-world road tests

Different filter media and geometries were tested until the optimal solution was found.

⸻

Intake Air Temperature (IAT) Management

Intake air temperature is critical in turbo engines, as the air heats up:

1. from compression in the turbo

2. further in the engine itself

The APR system begins by drawing air from the coldest possible area – the front of the vehicle before the radiator. From there, the air travels a short and efficient path through a closed system that prevents hot air from being drawn in from the engine bay.

Additionally, the carbon composite construction uses a thin fibreglass backing that improves thermal insulation.

⸻

Filtration

APR sought a filter media that would combine:

• high flow rate

• long lifespan

• good filtration

After numerous tests, it was concluded that a pleated cotton filter was the only option that met all three requirements simultaneously.

Thanks to the volute design of the housing and guide elements, pressure is distributed evenly across the entire filter. This means:

• more even filter loading

• better performance retention

• longer service intervals

• better filter efficiency itself

⸻

Sound

The OEM intake system is designed to be as quiet as possible – especially for customers who are not looking for a performance feel. APR has a different goal: to provide the true turbo sound, without it being too intrusive or sounding cheap.

Thanks to the natural stiffness of the carbon fiber composite material, the system creates a clean, tight, and distinct intake resonance that allows you to hear:

• how the turbo draws in air

• how the diverter valve releases pressure when lifting off the throttle

⸻

Installation

The system arrives pre-assembled by APR and is ready for installation in minutes with a minimal set of tools.

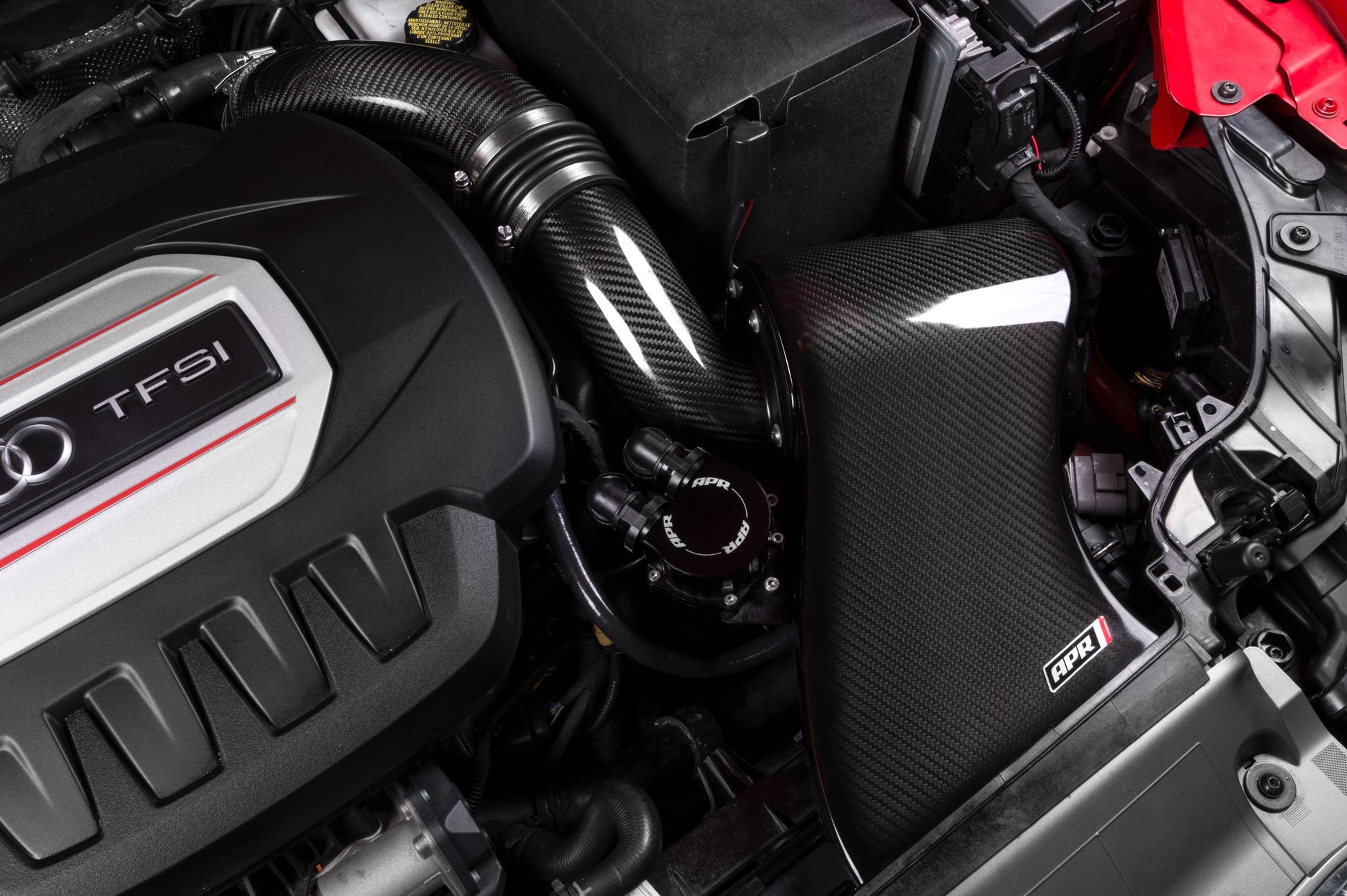

After removing the factory system, the APR intake:

• fits into the OEM position

• connects to the factory turbo inlet pipe

• uses original hardware

• does not fill the engine bay with unnecessary connectors and clamps

Because it uses the factory position, the system is fully compatible with future APR upgrades, including Stage III Turbocharger Systems.

⸻

Optional APR Silicone Coolant Hose

The factory coolant hose runs over the intake, but when routed underneath it, the engine bay looks significantly cleaner and more finished.

APR offers an optional silicone coolant hose that:

• replaces the OEM hose

• routes cleanly under the intake

• bypasses the APR catch can

• does not kink or unnecessarily stress mounting points

⸻

Main advantages:

• Improved mass airflow

• More power and torque

• More direct throttle response

• Lower intake temperatures

• High-quality carbon construction

• Excellent filtration and long service life

• Clean and premium sound

• Quick and easy installation

• Compatibility with future APR turbo upgrades

An ideal choice for enthusiasts looking for a premium carbon intake with real engineering value, better airflow, and OEM+ fitment, not just a visual upgrade.
