CTS TURBO Subframe Bushing Kit MK5/MK6/8P

This kit is designed to eliminate the characteristic clunking, shifting, and play in the subframe that often occurs in heavier or tuned vehicles.

The combination of OE replacement stretch bolts and reinforced ARP bolts provides a significantly tighter subframe attachment, improving front-end stability and feel during acceleration, braking, and cornering.

Key Benefits:

• Eliminates subframe clunking and shifting

• Improves stability and control

• Suitable for stock and modified vehicles

• Combination of OE spec and high-strength ARP hardware

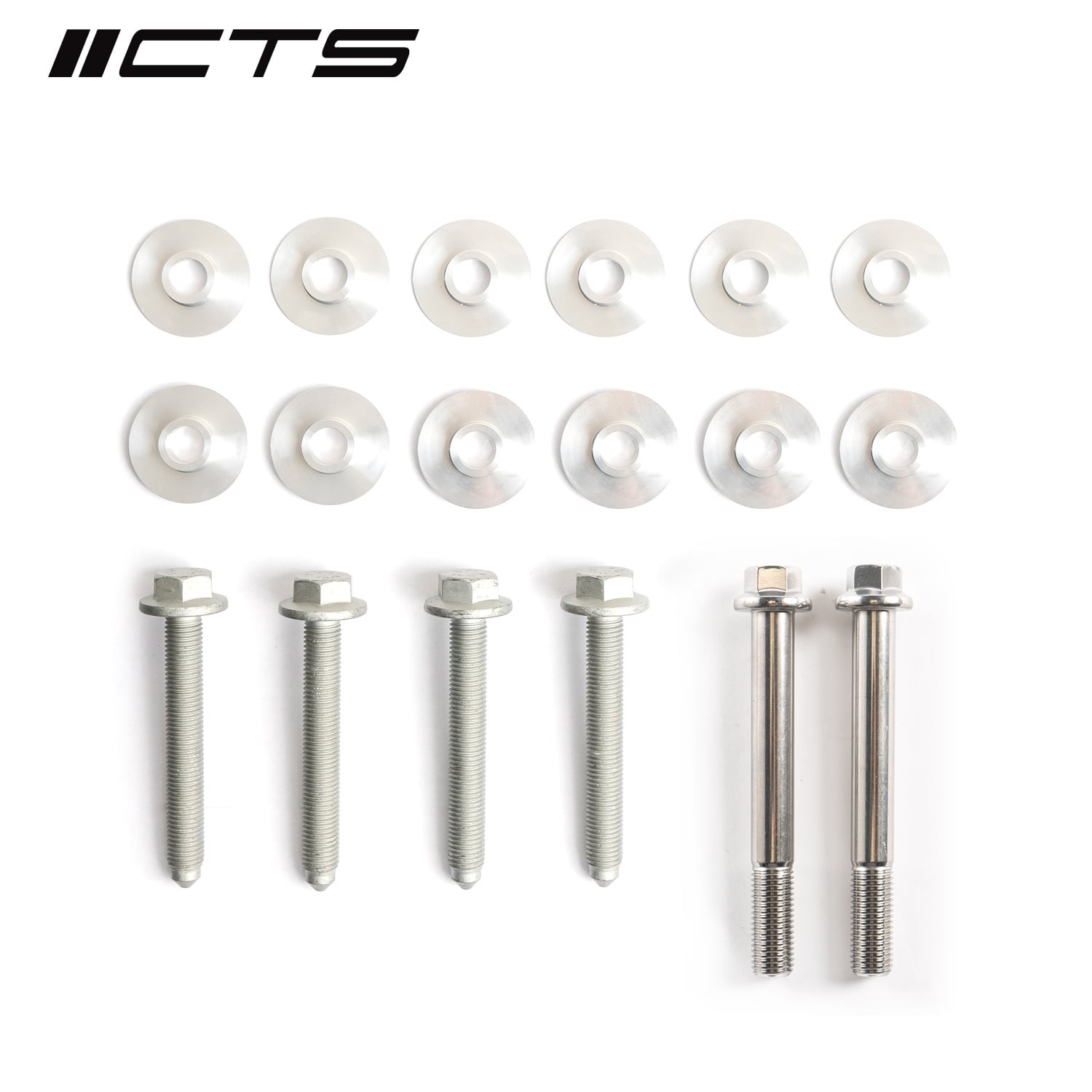

Kit Contents:

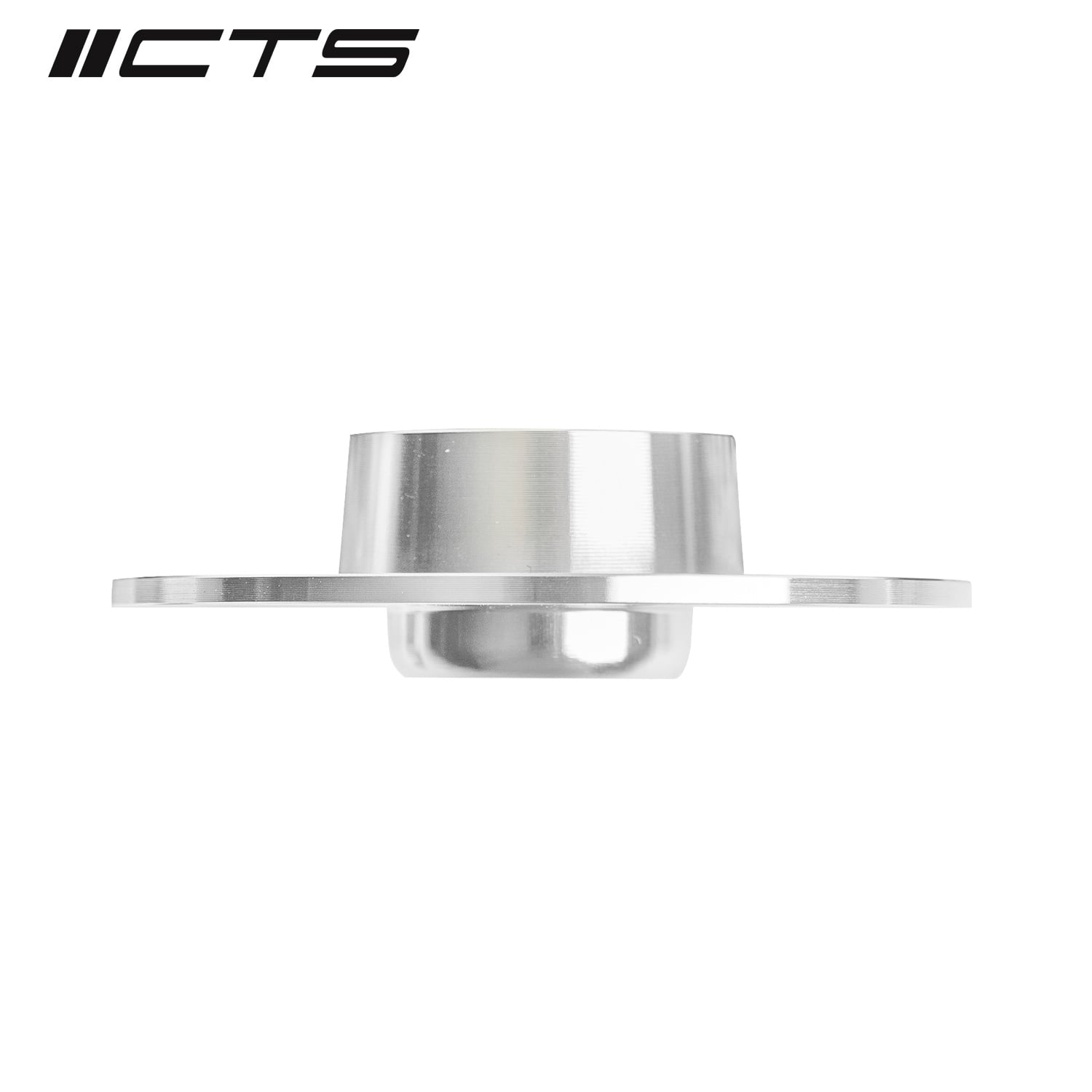

• 6 x Upper Insert

• 6 x Lower Insert

• 4 x Short OE Bolts

• 2 x Long ARP Bolts

Torque Specifications:

• ARP bolts = 85 Nm
  (reusable)

• 18 mm bolts = 70 Nm + 180°
  (not reusable)

• 16 mm bolts = 50 Nm + 90°
  (reusable once)

• 13 mm bolts = 20 Nm + 90°
  (reusable once)
