CTS TURBO Hybrid Turbo K04-X HYBRID TURBO

CTS Turbo is proud to officially introduce the new HYBRID K04-X turbo upgrade for 2.0T FSI and 2.0T TSI longitudinal engines – developed without compromise, with a focus on real performance, reliability, and OEM+ fitment.

Our engineers designed the compressor housing specifically to accommodate a larger billet compressor wheel, as well as a turbine housing optimized for a clipped K04 turbine wheel – exactly as it should be done. Unlike other manufacturers who simply install a larger CHRA into a small factory housing, the K04-X uses entirely specific housings created for this configuration.

High-quality castings are CNC machined and directly replace the factory turbo, without the need for additional parts, except for essential supporting modifications.

Due to the high-performance nature of the K04-X Hybrid 2.0T FSI/TSI, supporting modifications (detailed below) are necessary. We do not recommend using it with a stock exhaust system and intercooler.

This is undeniably the best Hybrid K04 turbo upgrade for Audi enthusiasts with 2.0T FSI and 2.0T TSI longitudinal engines. With proper software and appropriate modifications, the turbo supports up to 400 HP.

Key Features:

• CTS-spec HYBRID K04 CHRA with heavy-duty thrust bearings

• 48.5 / 61 mm billet compressor wheel in 6+6 (MFS – machined from solid) configuration

• Clipped K04 turbine wheel

• K04-X specific compressor and turbine housings – not reworked factory housing

• OEM+ manufacturing tolerances

• VSR high-speed balancing

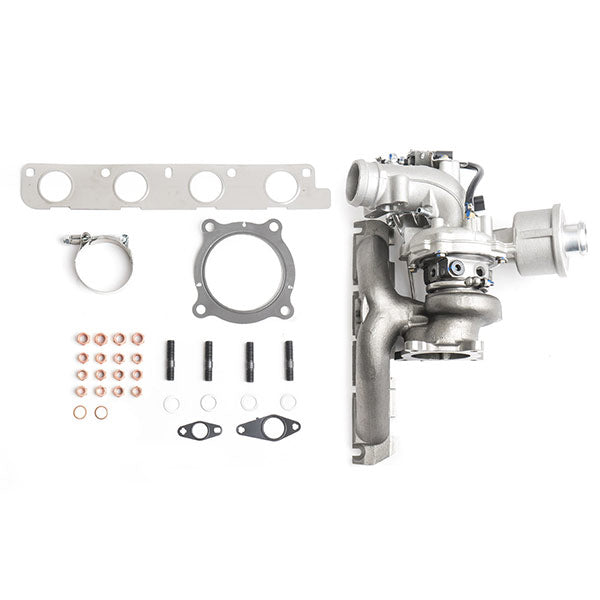

• Direct bolt-on replacement for the factory turbo

• OEM installation kit included

• Compatible with any software designed for Hybrid K04
