Racingline Magnetic Differential Drain Plug Kit

RacingLine Magnetic Differential Oil Plug Kit – VW / Audi / Cupra / Skoda AWD

The RacingLine Magnetic Differential Oil Plug Kit VWR180003 is an oil plug kit developed for differentials and transfer cases in VW, Audi, Cupra / SEAT, and Skoda all-wheel-drive vehicles.

This is a small but very significant preventative upgrade for Haldex AWD vehicles. The kit helps capture fine ferrous metal particles found in the differential and transfer case oil before they can continue to circulate through the lubrication system.

During normal operation of the differential and transfer case, microscopic metal wear particles are generated. The more dynamically the car is driven and the higher the power, the more important additional protection for these components becomes.

The magnetic drain plug attracts and retains fine ferrous particles in the oil, preventing them from continuing to circulate through the system. At the next service, the accumulated particles can be easily cleaned from the magnetic tip of the plug.

The kit also includes a non-magnetic filler plug, as well as 10 sealing washers, sufficient for 5 services. Since factory plugs and washers are single-use consumables, the RacingLine kit is a practical and long-term convenient solution.

The plugs are precision CNC machined from T6-6061 aerospace-grade aluminum, hand-polished, and finished with a gloss black anodized coating. The laser-engraved RacingLine logo adds a finished OEM+ look and highlights the quality of craftsmanship.

Main Advantages

• Differential and Transfer Case Oil Plug Kit
• Part number: VWR180003
• Suitable for Haldex AWD VW, Audi, Cupra / SEAT, and Skoda vehicles
• Magnetic plug captures fine ferrous metal particles in the oil
• Helps maintain a cleaner differential lubrication system
• Contributes to better protection of the differential and transfer case
• Especially useful for dynamic driving, higher power, and regular loads

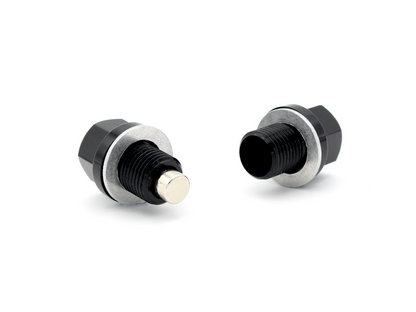

• Magnetic oil drain plug
• Non-magnetic oil filler plug
• Includes 10 sealing washers – sufficient for 5 services
• CNC machined from T6-6061 aerospace-grade aluminum
• Hand-polished and gloss black anodized finish
• White laser-engraved RacingLine logo
• Easy installation during the next oil change

Why does this upgrade matter?

The oil in the differential and transfer case operates under significant stress. During normal operation, fine metal particles can enter it, which over time increases the wear of internal components.

The RacingLine Magnetic Differential Oil Plug Kit adds an extra layer of protection, with the magnetic plug collecting these ferrous particles in one place. This way, during the next service, they can be removed instead of continuing to circulate in the oil.

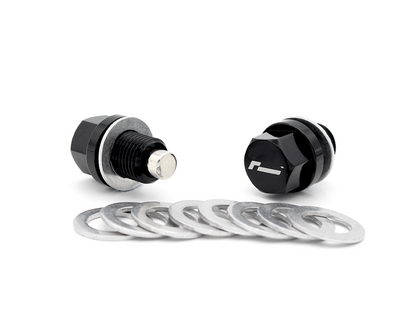

What the kit includes

• Magnetic oil drain plug
• Non-magnetic oil filler plug
• 10 sealing washers – sufficient for 5 services

Construction

• Material: T6-6061 aerospace-grade aluminum
• Precision CNC machining
• Magnetic tip on the drain plug
• Gloss black anodized coating
• White laser-engraved RacingLine logo
• Designed for long-term performance in the drivetrain system

Suitable for

• All newer cars and SUV models with Haldex all-wheel drive
• VW Golf 8 / 8.5 R – 2020+
• VW Golf 7 / 7.5 R – 2013–2020
• VW Golf 7 / 7.5 Alltrack – 2013–2020
• VW Passat B8 2.0 BiTDI 4Motion – 2015+
• VW Arteon 2.0 BiTDI 4Motion – 2017+
• VW T-Roc 2.0 TSI – 2017–2022
• VW Tiguan II 2.0 BiTDI – 2016+
• VW Tiguan II 2.0 TSI 190 hp – 2018+
• VW Golf 5 R32 – 2005–2008
• VW Golf 6 R – 2009–2014
• Audi S1 2.0 TFSI – 2015–2018
• Other VW / Audi / Cupra / SEAT / Skoda models with Haldex AWD system

Important

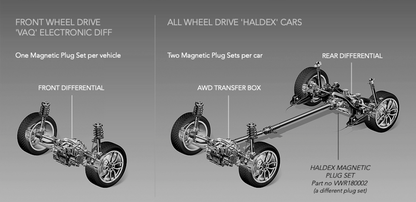

• For newer Haldex AWD vehicles, 2 kits per vehicle are required – one for the front transfer case and one for the rear differential.
• For older models like Golf 6 R, Audi S3 8P, and Golf 5 R32, only the rear differential plug fits.
• This kit is not a substitute for regular differential and transfer case maintenance.
• Use the correct oil according to the vehicle's specifications.
• Installation is recommended during an oil change.
• Use a new sealing washer at each service.
• Check compatibility by model, year, and drive type before ordering.

Recommended Combination

• For full protection of the AWD system, it can be combined with RacingLine Magnetic Haldex Plug Kit VWR180002.
• This adds magnetic protection for both the Haldex coupling and the differential and transfer case.
