Racingline Enhanced Engine Mounts / MQB / MQB EVO / A5

RacingLine Uprated Engine Mounts – A5 / MQB / MQB Evo

RacingLine Uprated Engine Motor Mounts are reinforced engine and transmission mounts developed for VW, Audi, Cupra / SEAT and Skoda A5, MQB and MQB Evo models.

Their main task is to reduce excessive engine and gearbox movement during acceleration, sudden load changes, and aggressive shifting. The result is a more direct feel, cleaner power transfer to the road, and significantly better control over the drivetrain.

Standard factory mounts compromise in favor of comfort and low vibrations. This is perfectly acceptable for normal driving, but with higher power, sportier driving, or track use, the engine and gearbox can move excessively. This leads to a soft feel, delayed response, imprecise gear changes, and front-end hop during sharp acceleration.

RacingLine solves this problem with completely redesigned replacement mounts, not just simple inserts that merely fill the voids of the factory mount. This provides a stronger structure, more precise positioning of the powertrain, and more stable operation under load.

The lower mount controls much of the front-to-back movement of the engine and transmission. Therefore, for fast road cars, RacingLine recommends starting with this mount. For high-power vehicles, track use, or drag racing, the full set of three mounts is the best solution.

The mounts and links are made from T6061 aluminum, precisely CNC-machined and combined with a carefully selected polymer of varying hardness. The goal is to reduce powertrain movement without making the car unnecessarily harsh to drive.

Key Advantages

• Uprated engine and transmission mounts
• Suitable for A5, MQB and MQB Evo platforms
• Reduce engine and gearbox movement under load
• Improve power transfer to the road
• Virtually eliminate front-end hop during sharp acceleration
• Improve throttle on/off feel
• Help achieve more precise and tighter gear changes
• Add strength and protection to the drivetrain in tuned cars
• Suitable for standard, software-tuned, and track-driven cars
• Completely redesigned replacement components, not just inserts in OEM mounts
• Made from T6061 aluminum
• Precise CNC machining
• Polymer with carefully selected hardness for a balance between control and comfort
• Option to choose between a lower mount or a full set of three mounts

What do they do?

The engine and gearbox are fixed to the car through several main points. The two upper mounts support the weight of the engine and transmission, while the lower mount controls the movement of the entire powertrain during acceleration, braking, and load changes.

When these mounts are too soft, the powertrain shifts more than it should. This leads to a loss of directness, a more unstable feel during gear changes, and a greater risk of front-end hop during sharp acceleration.

RacingLine Uprated Engine Mounts fix the engine and gearbox much more stably, making the car more direct, sharper, and more predictable.

Lower Mount or Full Set?

• Lower Mount: the best choice for most fast road cars. Provides a significant portion of the improvement without adding excessive noise and vibrations.
• Full set of 3 mounts: recommended for high-power vehicles, track use, drag racing, or very aggressive operation.

Construction

• Main components made from T6061 aluminum
• CNC machining for high precision and strength
• Reinforced polymer elements with carefully selected hardness
• Developed as direct replacement components
• Designed for better control of engine and transmission movement

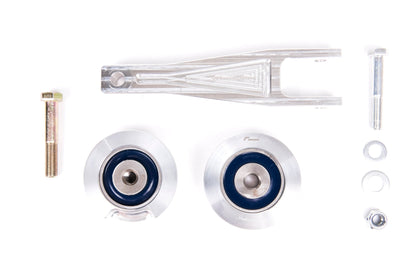

• The MQB lower kit also includes an aluminum subframe mount link

Versions and Product Numbers

MQB / MQB Evo models with aluminum subframe

• VWR15G701 – Gearbox mount
• VWR15G702 – Engine mount

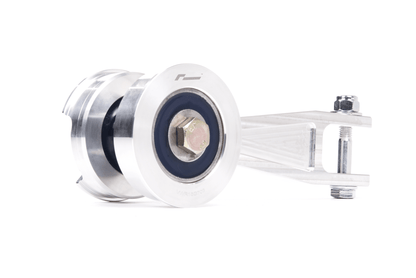

• VWR150002 – Lower mount and subframe link

MQB models with steel subframe

• VWR15G701 – Gearbox mount
• VWR15G702 – Engine mount
• VWR15G703 – Lower mount and subframe link

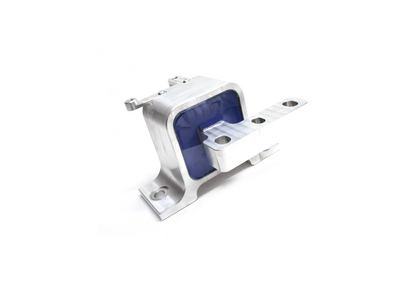

A5 platform 2.0 TFSI EA113

• VWR15G501 – Gearbox mount
• VWR15G502 – Engine mount
• VWR15G503 – Lower subframe mount

Suitable for – MQB / MQB Evo with aluminum subframe

• VW Golf 8 / 8.5 GTI – 2020+
• VW Golf 8 / 8.5 GTI Clubsport – 2020+
• VW Golf 8 / 8.5 R – 2020+
• VW T-Roc 2.0 TSI – 2017–2022
• Audi S3 8Y / 8Y.2 – 2020+
• Audi A3 8Y / 8Y.2 – 2020+
• Audi S3 8V – 2013–2020
• Audi A3 8V – 2013–2020
• Audi TT 8S – 2014+
• Audi TTS 8S 2.0 TFSI – 2015–2021

Suitable for – MQB with steel subframe

• VW Golf 7 / 7.5 R – 2013–2020
• VW Golf 7 / 7.5 GTI & Clubsport – 2013–2020
• VW Passat B8 2.0 TSI – 2015+
• VW Arteon 2.0 TSI – 2017–2020
• VW T-Roc 2.0 TSI 190 hp – 2017–2022
• VW Tiguan II 2.0 TSI – 2016–2020
• VW Jetta / GLI 7 – 2018+
• Cupra Leon 4 / 4.5 – 2020+
• SEAT Leon III Cupra 5F – 2014–2020
• SEAT Leon III 5F – 2015–2020
• Cupra Formentor – 2020+

Suitable for – A5 platform 2.0 TFSI EA113

• VW Golf 5 GTI – 2005–2008
• VW Golf 5 R32 – 2005–2008
• VW Golf 5 GTI Edition 30 / Pirelli – 2006–2007
• VW Golf 6 GTI – 2009–2014
• VW Golf 6 R – 2009–2014
• VW Scirocco R – 2009–2017
• VW Jetta / GLI 5 – 2005–2011
• VW Jetta / GLI 6 – 2011–2018
• Audi S3 8P – 2006–2012
• Audi A3 8P – 2003–2012

Important

• The full set of three mounts is a more extreme upgrade and may increase noise, vibrations, and harshness in the cabin.
• After installation, it is normal for the mounts to have a bedding-in period during the first few hundred kilometers.
• For cars driven mainly on the road, RacingLine recommends starting with the lower mount.
• For track, drag, or very high-power cars, the full set is recommended.
• It is important to choose the correct version according to the platform and subframe type – aluminum or steel.
• Checking compatibility by model, year, engine, and subframe is recommended before ordering.
