Racingline Intercooler Kit MQB-EVO

RacingLine Performance Intercooler – 2.0 TSI EA888 Gen.4 MQB Evo

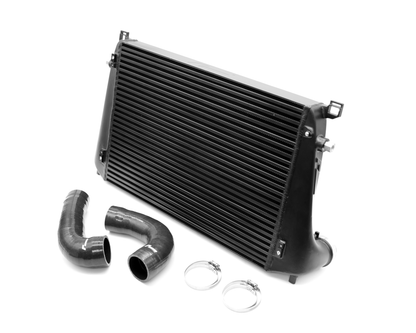

RacingLine Performance Intercooler VWR141000 is a high-performance intercooler specifically designed for 2.0 TSI EA888 Gen.4 MQB Evo cars from VW, Audi, Cupra, and Skoda.

The factory intercooler on the MQB Evo 2.0 TSI platform struggles with higher power, aggressive driving, and repeated accelerations. When intake temperatures start to rise, heat soak occurs, and the car begins to lose power precisely when the load is greatest.

RacingLine solves this problem with a massive Plate & Bar intercooler featuring a 70mm core and huge internal volume. Compared to the factory cooler, the RacingLine intercooler offers a 96% larger volume, making it one of the most significant solutions for this platform.

The main goal is clear: lower intake temperatures, minimal pressure drop, and stable power under repeated load. RacingLine has sought the right balance between maximum cooling and minimal pressure loss to achieve a larger size without unnecessary turbo lag.

The intercooler uses enlarged 70mm inlets and outlets, whereas the factory cooler has 60mm outlets. This allows for higher flow and freer passage of compressed air. Corresponding reinforced pressure hoses, specially developed for this system, are also included in the kit.

The cast end tanks are designed with internal airflow guides that distribute air evenly across the entire depth of the core. This reduces turbulence, improves efficiency, and helps the intercooler operate stably even under heavy load.

This is not a universal intercooler adapted for MQB Evo. RacingLine developed it from scratch specifically for the 2.0 TSI EA888 Gen.4, which means better fitment, more correct airflow, and more predictable behavior in real-world use.

Main Advantages

• Specifically designed for 2.0 TSI EA888 Gen.4 MQB Evo
• Product number: VWR141000
• 96% larger volume compared to the factory intercooler

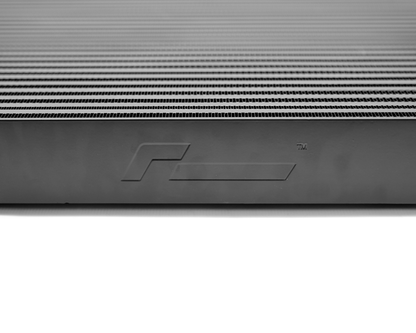

• Large 70mm Plate & Bar core
• Internal volume: 19,404,000 mm³ compared to 9,895,200 mm³ for the factory cooler

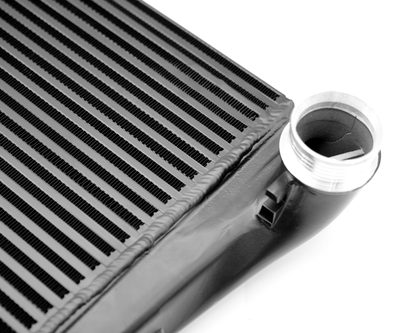

• Enlarged 70mm inlets and outlets compared to 60mm for OEM
• Maintains lower intake temperatures during aggressive driving
• Reduces heat soak effect during repeated accelerations
• Supports more stable power for Stage 1, Stage 2, and more serious configurations
• Optimal balance between cooling and minimal pressure drop
• Cast end tanks with internal airflow guides
• Better air distribution across the entire depth of the core

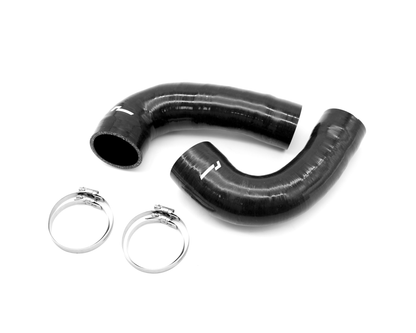

• Includes reinforced pressure hoses with 70mm size
• Hoses with multi-layer construction, internal reinforcement, and resistance to temperature and pressure
• Included Mikalor stainless steel clamps
• Developed from scratch for MQB Evo Gen.4, not a universally adapted solution

Construction

• Plate & Bar type intercooler
• 70mm core depth
• Cast end tanks with optimized internal flow
• Internal guides for better air distribution
• 70mm inlet and outlet for higher flow
• Reinforced pressure hoses included in the kit
• Mikalor stainless steel clamps

Suitable for

• VW Golf 8 / 8.5 GTI – 2020+
• VW Golf 8 / 8.5 GTI Clubsport – 2020+
• VW Golf 8 / 8.5 R – 2020+
• VW Arteon 2.0 TSI EA888.4 – 2020+
• VW Arteon R 2.0 TSI 320 hp – 2020+
• VW T-Roc R 2.0 TSI EA888.4 – 2021+
• VW Tiguan II 2.0 TSI 245 hp – 2021+
• VW Tiguan II R 2.0 TSI 320 hp – 2020+
• Audi S3 8Y / 8Y.2 – 2020+
• Audi A3 2.0 TSI 8Y / 8Y.2 – 2020+
• Audi TTS 8S 2.0 TFSI 320 hp EA888.4 – 2021+

Installation

• To accommodate the larger RacingLine intercooler, slight trimming of the black plastic radiator support is required.
• For popular models like the Golf 8, this trimming is minimal, but for some other MQB Evo models, more adjustment may be necessary.
• RacingLine states that the installation is designed for a radiator support with VW part number 5H0 805 588 J.

Important

• Intended only for vehicles with the 2.0 TSI EA888 Gen.4 MQB Evo engine.
• It is recommended to check compatibility by model, year, and engine before ordering.
• During installation, slight trimming of the plastic radiator support may be necessary.
• For maximum results, it can be combined with a RacingLine intake system, turbo inlet, hard charge pipes, pressure hoses, and a software upgrade.
