Racingline Intercooler MQB / 2.5 TSI EA855

RacingLine Performance Intercooler – Audi RS3 8V.2 / 8Y & TT RS 8S 2.5 TFSI

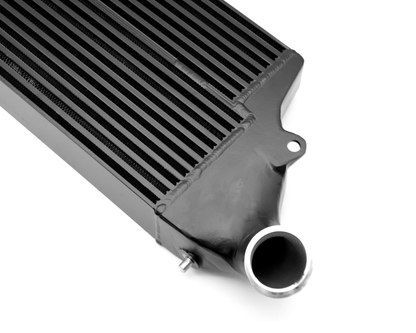

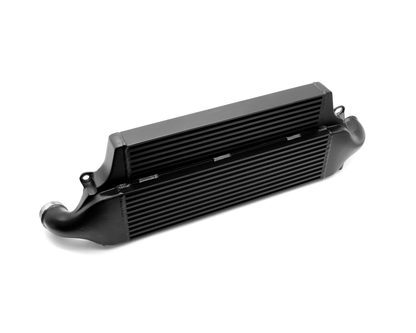

The RacingLine Performance Intercooler VWR143000 is a high-efficiency intercooler developed specifically for the Audi RS3 8V.2 / 8Y and Audi TT RS 8S with the 2.5 TFSI EA855 engine.

The factory intercooler on the Audi RS3 and TT RS struggles to meet the demands of cars with higher power, software upgrades, or aggressive driving. Under heavy load, intake air temperature quickly rises, thermal saturation occurs, and the car begins to lose power precisely when it is expected to perform at its best.

RacingLine solves this problem with a massive Plate & Bar intercooler featuring a stepped core, designed to maintain low intake air temperatures repeatedly – without the need for long cooling periods after heavy use.

Compared to the factory cooler, the RacingLine intercooler offers 70% greater volume and 76.8% larger frontal area. This provides significantly better cooling capacity, more stable power, and improved durability during repeated accelerations.

RacingLine's goal was to find the right balance between maximum cooling and minimum pressure drop. Thus, the intercooler is significantly larger and more efficient without adding unnecessary turbo lag.

The cast end tanks are designed with internal air flow guides that direct air evenly across the entire depth of the core. This reduces turbulence, improves efficiency, and allows the system to operate stably under high loads.

The intercooler uses 70mm inlet and outlet, meaning it can be used with both factory boost pipes and enhanced RacingLine boost pipe / boost hose solutions for the 2.5 TFSI.

Key Benefits

• Developed specifically for Audi RS3 8V.2 / 8Y and Audi TT RS 8S
• Product number: VWR143000
• Suitable for 2.5 TFSI EA855 engines with 400 hp
• 70% greater volume compared to the factory intercooler
• 76.8% larger frontal area for better cooling
• Internal volume: 14,141,500 mm³ compared to 8,345,600 mm³ for OEM
• Measured temperature reduction: 20.5°C
• Stepped Plate & Bar core with high cooling efficiency
• Maintains lower intake air temperatures under repeated loads
• Reduces thermal saturation during aggressive driving
• Helps maintain more stable power with software upgrades and higher boost
• Optimized balance between cooling and minimal pressure drop
• Cast end tanks with internal air flow guides
• 70mm inlet and outlet
• Compatible with factory boost pipes or RacingLine enhanced pipes
• Installation without cutting or drilling for Audi RS3

Why This Intercooler Matters

With the standard intercooler, intake air temperatures quickly rise during aggressive driving or after power increases. This leads to a drop in performance and the need for cooling time.

The RacingLine Performance Intercooler keeps temperatures under control even during repeated accelerations. This allows the car to maintain its power more stably, without a perceived drop after several consecutive loads.

Construction

• Plate & Bar type intercooler
• Stepped core with high-efficiency internal tubes
• Optimized fin density
• Cast end tanks with minimal turbulence
• Internal guides for even air distribution
• 70mm inlet and 70mm outlet
• Developed specifically for RS3 8V.2 / 8Y and TT RS 8S, not a universally adapted solution

Suitable For

• Audi RS3 8Y / 8Y.2 2.5 TFSI – 2021+
• Audi RS3 8V.2 2.5 TFSI – 2017–2020
• Audi TT RS 8S 2.5 TFSI – 2017+

Engines

• DAZA
• DAZC
• DNWA
• DXHA

Installation

• For Audi RS3 8V.2 / 8Y, the installation is designed without cutting or drilling.
• The intercooler is designed to retain the car's original front crash bar.
• For Audi TT RS 8S, slight trimming of the front plastic panel is required.

Recommended Combination

• For maximum results, it can be combined with the RacingLine Boost Hose Kit / Boost Pipe Kit for 2.5 TFSI.
• Improved boost pipes and hoses help ensure even freer airflow between the turbocharger, intercooler, and throttle body.

Important

• Intended for 2.5 TFSI EA855 models with a factory power of around 400 hp.
• Compatibility check by model, year, and engine is recommended before ordering.
• For the TT RS 8S, slight trimming of the front plastic panel is required.
• For maximum effect, it can be combined with a RacingLine intake system, boost pipes, boost hoses, and a software upgrade.
