Raceline Intercooler Kit for 2.0 TSI EA113 / EA888.1

RacingLine Performance Intercooler – 2.0 TSI EA113 / EA888.1

RacingLine Performance Intercooler VWR141002 is a high-performance intercooler with a reinforced pressure hose kit included, specially developed for 2.0 TSI EA113 and EA888.1 engines in VW, Audi, SEAT / Cupra, and Skoda models.

The factory intercooler in these platforms struggles to cope with higher power, aggressive driving, and repeated accelerations. When the intake air temperature starts to rise, heat saturation occurs, and the car begins to lose power precisely when the load is greatest.

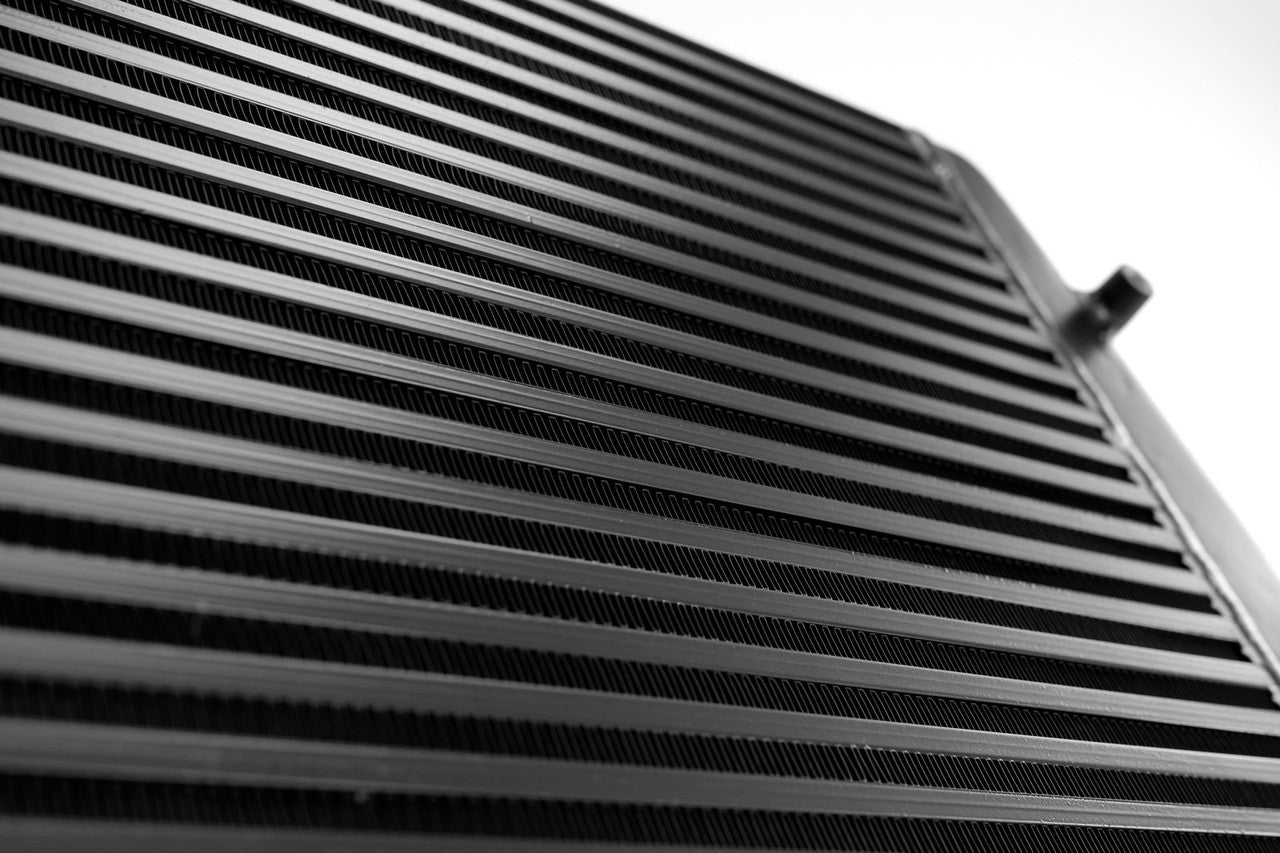

RacingLine solves this problem with a massive Plate & Bar intercooler featuring a 65mm core and significantly increased internal volume. Compared to the factory cooler, the RacingLine intercooler offers 96% greater volume, providing much better control over intake temperatures under real load.

RacingLine's goal is to achieve the right balance between maximum cooling and minimal pressure drop. Thus, the intercooler is significantly larger and more efficient without adding unnecessary turbo lag.

The kit uses enlarged 70mm inlet and outlet, whereas the factory intercooler has 60mm outlets. This allows for higher flow and freer passage of compressed air. Also included in the kit are corresponding reinforced pressure hoses, as well as an adapter to transition to the larger size.

The cast end tanks are designed with internal air flow guides that direct air up and down through the entire depth of the core. This reduces turbulence, improves air distribution, and helps the intercooler operate stably under repeated loads.

This is the right upgrade for cars with software tuning, higher boost pressure, track driving, or simply for owners who want more consistent power and lower temperatures during dynamic use.

Main Advantages

• Developed for 2.0 TSI EA113 and EA888.1 engines
• Part number: VWR141002
• 96% larger volume compared to the factory intercooler
• Massive 65mm Plate & Bar core
• Core size: 610 x 440 x 65 mm
• 70mm inlet and outlet vs. 60mm for OEM
• Includes enlarged reinforced pressure hoses
• Includes adapter for transitioning to the larger size
• Reduces intake air temperature under load
• Helps limit heat saturation during repeated accelerations
• Maintains more stable power during dynamic and track driving
• Optimal balance between cooling and minimal pressure drop
• Cast end tanks with internal air flow guides
• Better air distribution through the entire depth of the core
• Lower turbulence and freer airflow
• Better foundation for Stage 1, Stage 2, and more serious configurations

Why does this intercooler matter?

For a standard car, the factory intercooler may seem sufficient, but with more aggressive driving, hot weather, or a software upgrade, intake air temperatures quickly rise. This leads to a drop in power and a need for cool-down time.

The RacingLine Performance Intercooler keeps temperatures under control time and again, so the car maintains its power during repeated loads, without long cool-down periods.

Construction

• Plate & Bar type intercooler
• 65mm core depth
• Increased internal volume
• Cast end tanks with optimized internal flow
• Internal guides for better air distribution
• 70mm inlet and 70mm outlet
• Reinforced multi-layer pressure hoses included in the kit
• Hoses with internal reinforcement for resistance to temperature, deformation, and high pressure

Suitable for

• VW Golf 5 GTI – 2005–2008
• VW Golf 5 GTI Edition 30 / Pirelli – 2006–2007
• VW Golf 6 GTI – 2009–2014
• VW Golf 6 R – 2009–2014
• VW Scirocco – 2008–2017
• VW Scirocco R – 2009–2017
• VW Jetta / GLI 5 – 2005–2011
• VW Jetta / GLI 6 – 2011–2018
• VW Passat B6 – 2007–2010
• VW Passat B7 – 2010–2012
• Audi S3 8P – 2006–2012
• Other VW / Audi / SEAT / Cupra / Skoda models with 2.0 TSI EA113 or EA888.1 engine

Installation

• Due to the significantly larger size of the RacingLine intercooler, some vehicles may require slight trimming of the black plastic radiator support.
• For popular models like Golf 5 / Golf 6 and Audi A3 / S3 8P, this trimming is usually minimal.
• Some SEAT Leon models may require more adaptation.

Important

• Designed for vehicles with 2.0 TSI EA113 / EA888.1 engine.
• Compatibility check by model, year, and engine is recommended before ordering.
• Installation may require slight trimming of the plastic radiator support.
• For maximum results, it can be combined with a RacingLine intake system, software upgrade, boost pipes, and other air path improvements.
