Racingline Turbo Inlet Pipe Kit RS3 8V.2 & 8Y TTRS

RacingLine Boost Pipe Kit – Audi RS3 / TT RS / Formentor VZ5 2.5 TFSI

RacingLine Boost Pipe Kit VWR140011 is a high-quality upgrade for the pressurized air path in Audi RS3 8V.2 / 8Y, Audi TT RS 8S and Cupra Formentor VZ5 2.5 TFSI.

The kit replaces the factory plastic pipes and flexible rubber boost hoses with a larger 70mm aluminum boost pipe and reinforced silicone hoses with a smooth internal profile.

The goal is clear: freer airflow, less resistance, less turbulence, and more reliable operation under high pressure and high temperatures. This is especially important for 2.5 TFSI cars with software tuning, higher boost, or more serious power goals.

The factory plastic pipe has a diameter of 63mm, while RacingLine uses a 70mm outer diameter, maintaining the size from the intercooler outlet all the way to the throttle body. This keeps the air path smoother and less restrictive.

The aluminum pipe also eliminates the factory indentation for the wiring harness, which in the standard pipe disrupts smooth airflow. The result is better maintained laminar flow and more efficient turbocharger operation.

The silicone hoses are reinforced to maintain their shape under high temperature and high pressure. The internal fluorosilicone surface provides better resistance against oil and fuel vapors, and the Mikalor stainless steel clamps reduce the risk of pressure leaks and hose slippage.

Main Advantages

• Developed for 2.5 TFSI engines with 400 hp
• Suitable for Audi RS3 8V.2 / 8Y, Audi TT RS 8S and Cupra Formentor VZ5
• Replaces factory plastic pipes and rubber boost hoses
• Larger 70mm aluminum boost pipe
• Maintains diameter from intercooler outlet to throttle body
• Removes factory wiring harness indentation
• Smoother air path and fewer internal restrictions
• Reduces turbulence in connections
• Helps the turbocharger operate with less resistance
• Suitable for high pressure, high temperature, and tuned cars

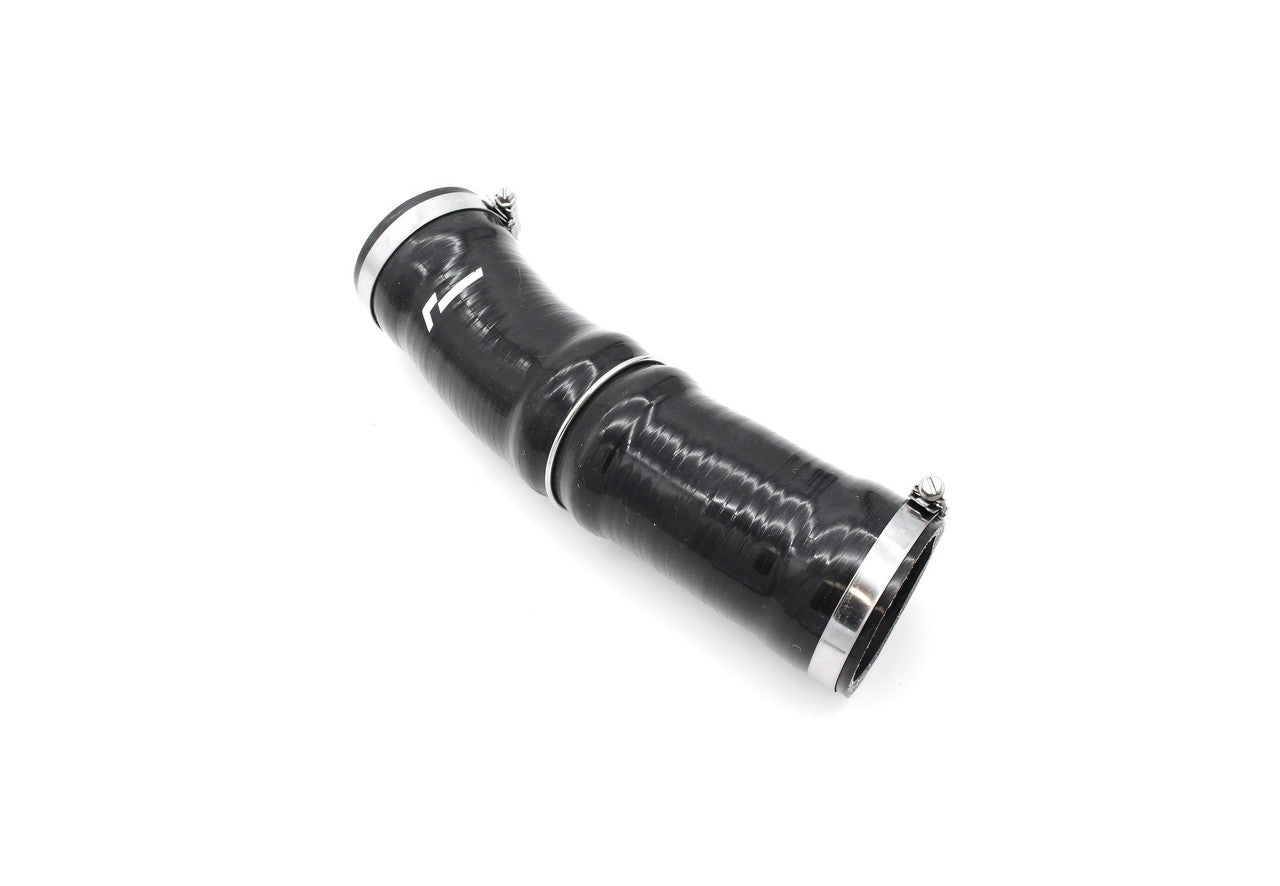

• Reinforced silicone hoses with high resistance
• Internal fluorosilicone surface for protection against oil and fuel vapors
• Stepped internal transitions for smoother airflow
• Mikalor stainless steel clamps
• Direct OEM replacement for easy installation

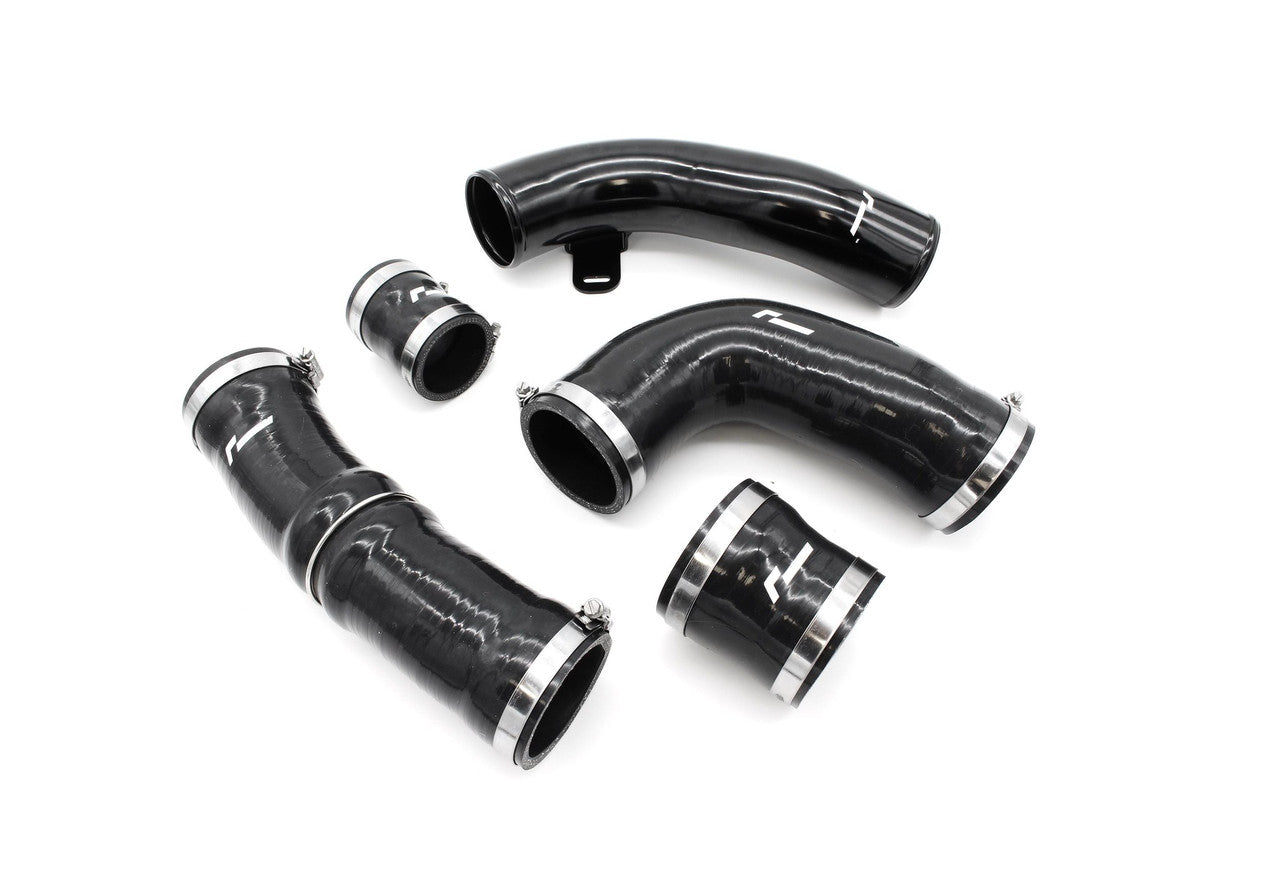

5-Piece Kit

• 70mm aluminum boost pipe
• Hose to intercooler outlet
• Hose to intercooler inlet
• Hose to turbo outlet
• Hose to throttle body

Construction

• 70mm aluminum boost pipe
• Reinforced high-quality silicone
• Stepped internal connections for port-diameter matched transition
• Internal fluorosilicone surface for resistance against oil and fuel vapors
• Flexible sections allowing engine movement without hose compression
• Stainless Mikalor clamps for secure fastening
• Pressure tested far beyond factory turbo capabilities

Suitable for

• Audi RS3 8Y / 8Y.2 2.5 TFSI – 2021+
• Audi RS3 8V.2 Evo 2.5 TFSI – 2017–2020
• Audi TT RS 8S 2.5 TFSI – 2017+
• Cupra Formentor VZ5 2.5 TFSI – 2020+

Engines

• DAZA
• DAZC
• DNWA
• DXHA

Important

• The kit is designed for 2.5 TFSI models with factory power around 400 hp.
• Compatibility check by model, year, and engine is recommended before ordering.
• For maximum results, it can be combined with a RacingLine intake system, intercooler, software upgrade, or other air path improvements.
